Forging Capabilities
Forging Types

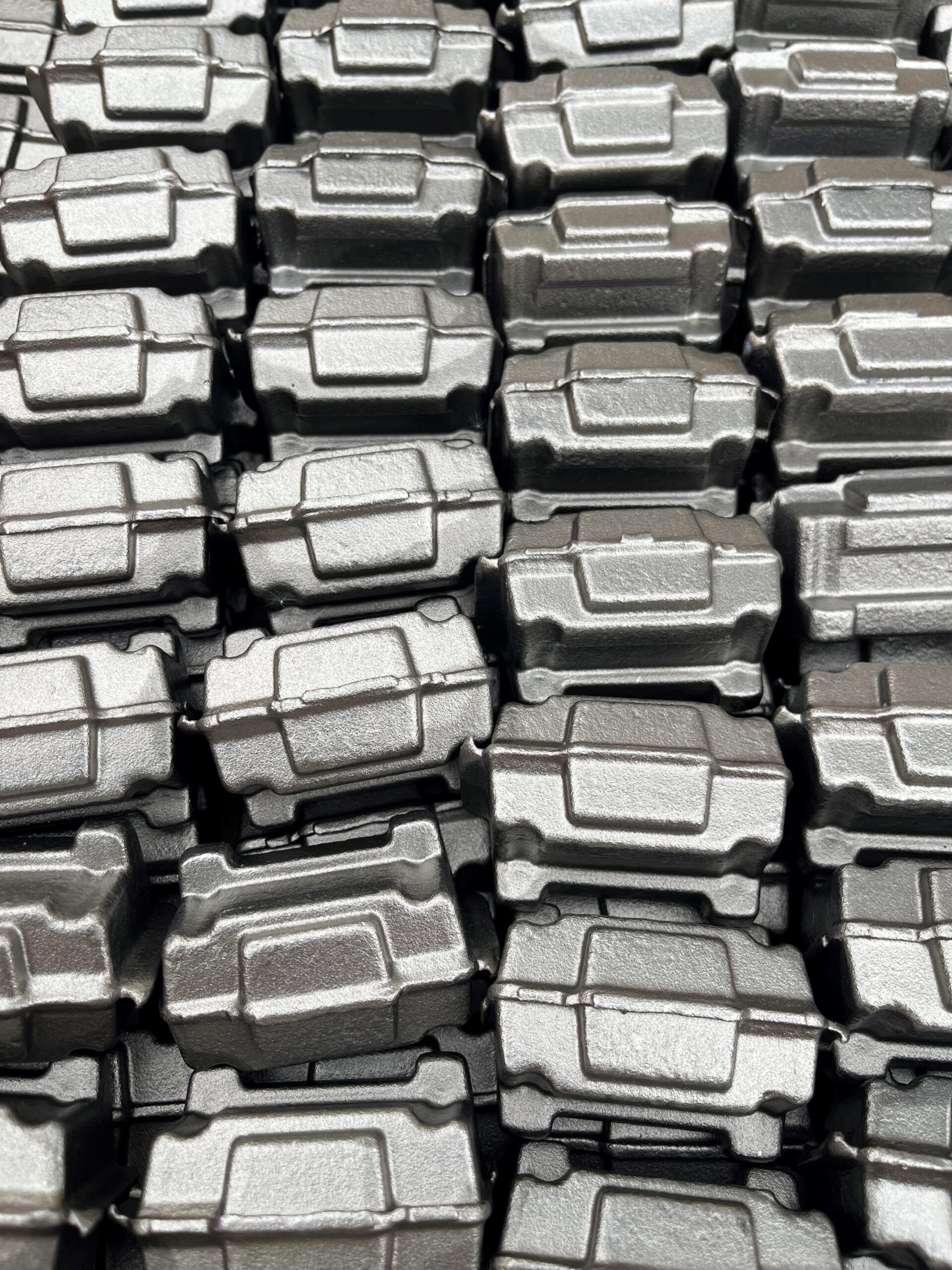

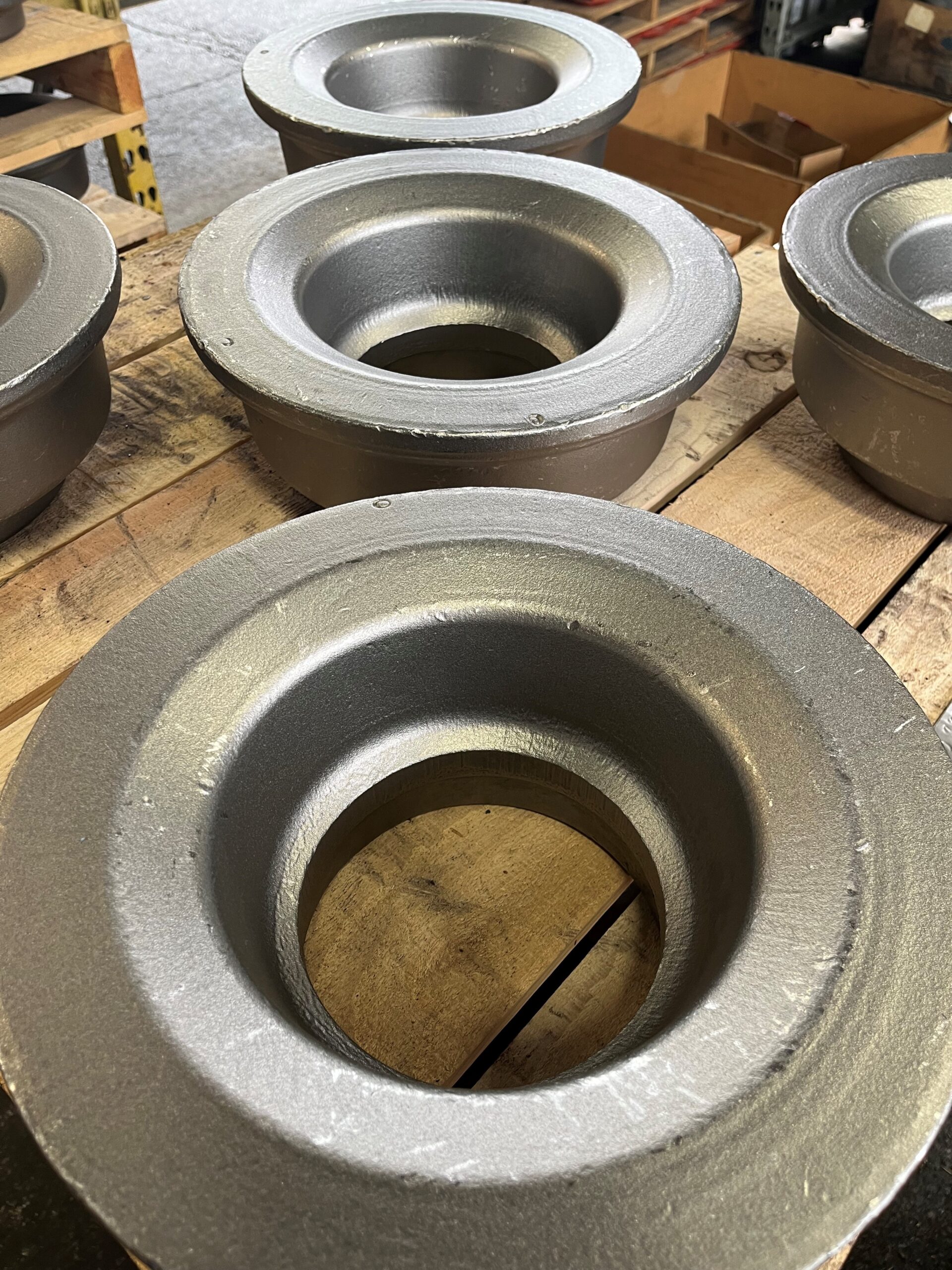

Closed-Die Forging
Ideal for complex geometries and critical applications where repeatability and highly controlled material integrity are essential. Good for medium to high volume, but flexible enough for low volume.
- High dimensional accuracy & repeatability
- Suitable for net and near-net-shape parts
- Excellent grain flow & improved mechanical properties
Upset Forging
Ideal for shaft single end deformation where localized control is critical. Good for high volume runs that meet the geometry criteria
- Enhanced fatigue resistance in key stress areas
- Upset equipment 8″ down to 2 1/2″
- Cost-effective for shaft components

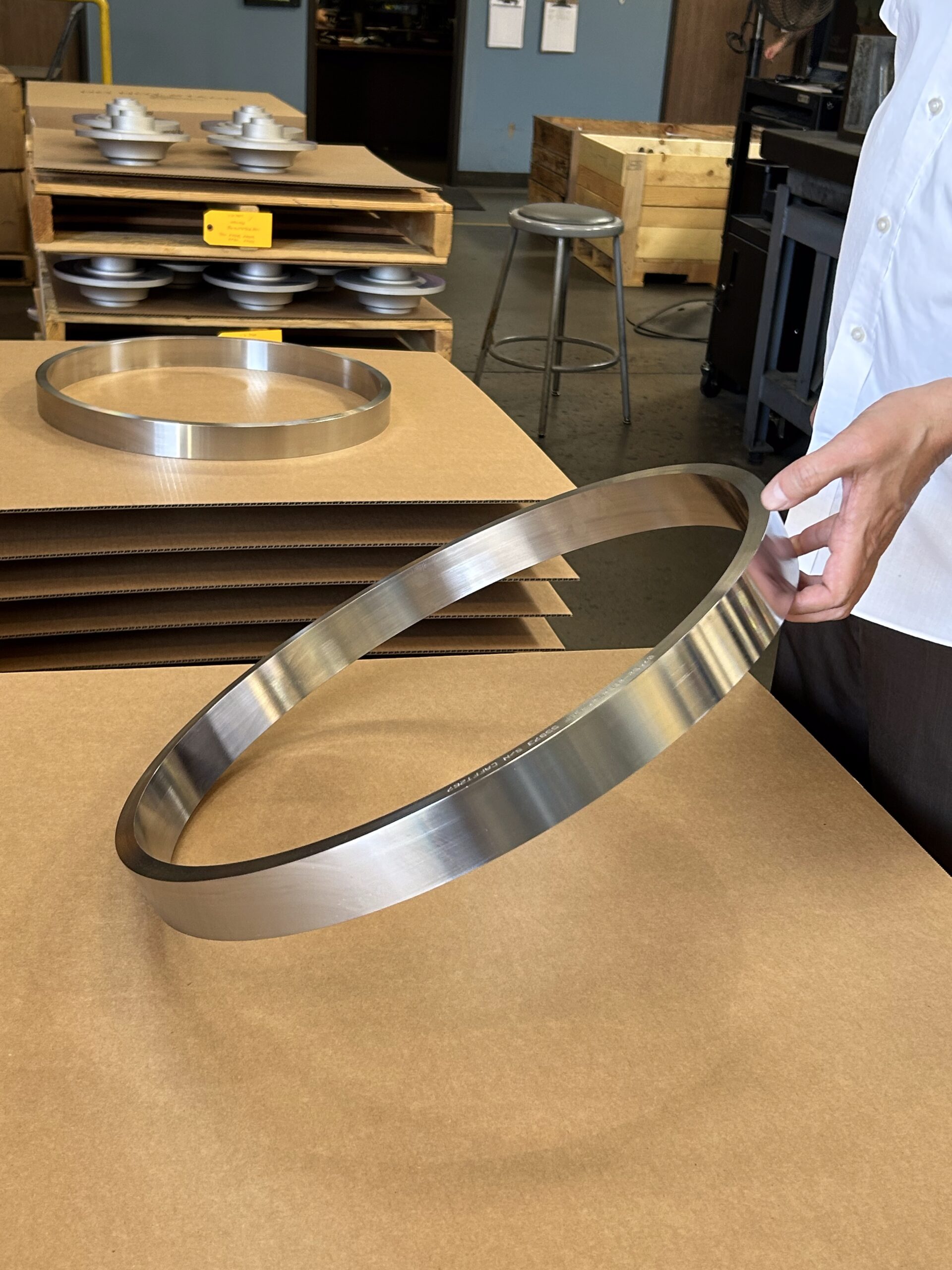

Seamless Rolled Ring
Ideal for bearings, gears, flanges, and jet engine components where continuous circumferential grain flow is required. Good for high, medium, and low volume
- Exceptional strength-to-weight ratio
- Seamless rings up to 40″ in diameter and 9″ in height
- Precise OD, wall thickness, and ID control
Materials Expertise
We forge & fabricate a wide range of high-performance materials tailored to Aerospace, Military Defense, Power Generation, & Space applications.
Our engineers, metallurgists, customer team work closely with our customers to ensure the material and process selected is matched to the requirement. We also help develop the correct special process parameters as required,
Titanium
Partial list of types Forged:
- Ti 5-2.5
- Ti 6-2
- Ti 6-4
- Ti 6-6-2
- Ti 10-2
Nickel-Based Superalloys
Partial list of types Forged:
- Inconel
- Waspaloy
- Hy-Tuf
- Nitronic
- Rene
.
Stainless Steels
Partial list of types Forged:
- 300M
- 304
- 310
- 316
- 410
Carbon Steel
Partial list of types Forged:
- 4130
- 4140
- 4340
- 4815
- 9310
equipment to meet a wide range of customer needs
All of our equipment is optimized for repeatability and reproducibility with overlapping capabilities to ensure we always deliver high-quality components on-time. We consistently invest in our equipment; advanced features include automated transportation, vision control systems, and industry leading furnace controls.
Contact us today to build your next component
Upset Forgings
| Alloy Steels | Stainless Steels Nickel Alloys | Titanium | |
|---|---|---|---|
| Upsetters | Max OD | Max OD | Max OD |
| 2 1/2" to 8" | 14.5" | 14.5" | 14.5" |
Closed Die Forgings
| Alloy Steels | Stainless Steels Nickel-based Alloys | Titanium | ||||
|---|---|---|---|---|---|---|
| Mechanical Presses | Max Part Weights (lbs.) | Max OD (inches) | Max Part Weights (lbs.) | Max OD (inches) | Max Part Weights (lbs.) | Max OD (inches) |
| 750 T to 6,000 T | 250 | 18" | 150 | 17" | 150 | 17" |
Rolled Rings
| Alloy Steels Stainless Steels | Titanium | Nickel-based Alloys | ||||||
|---|---|---|---|---|---|---|---|---|
| OD (inches) | Max Height (inches) | Max Mult Wt. (lbs.) | OD (inches) | Max Height (inches) | Max Mult Wt. (lbs.) | OD (inches) | Max Height (inches) | Max Mult Wt. (lbs.) |
| 8" to 40" | 9" | 265 | 8" to 40" | 9" | 150 | 8" to 30" | 9" | 100 |
